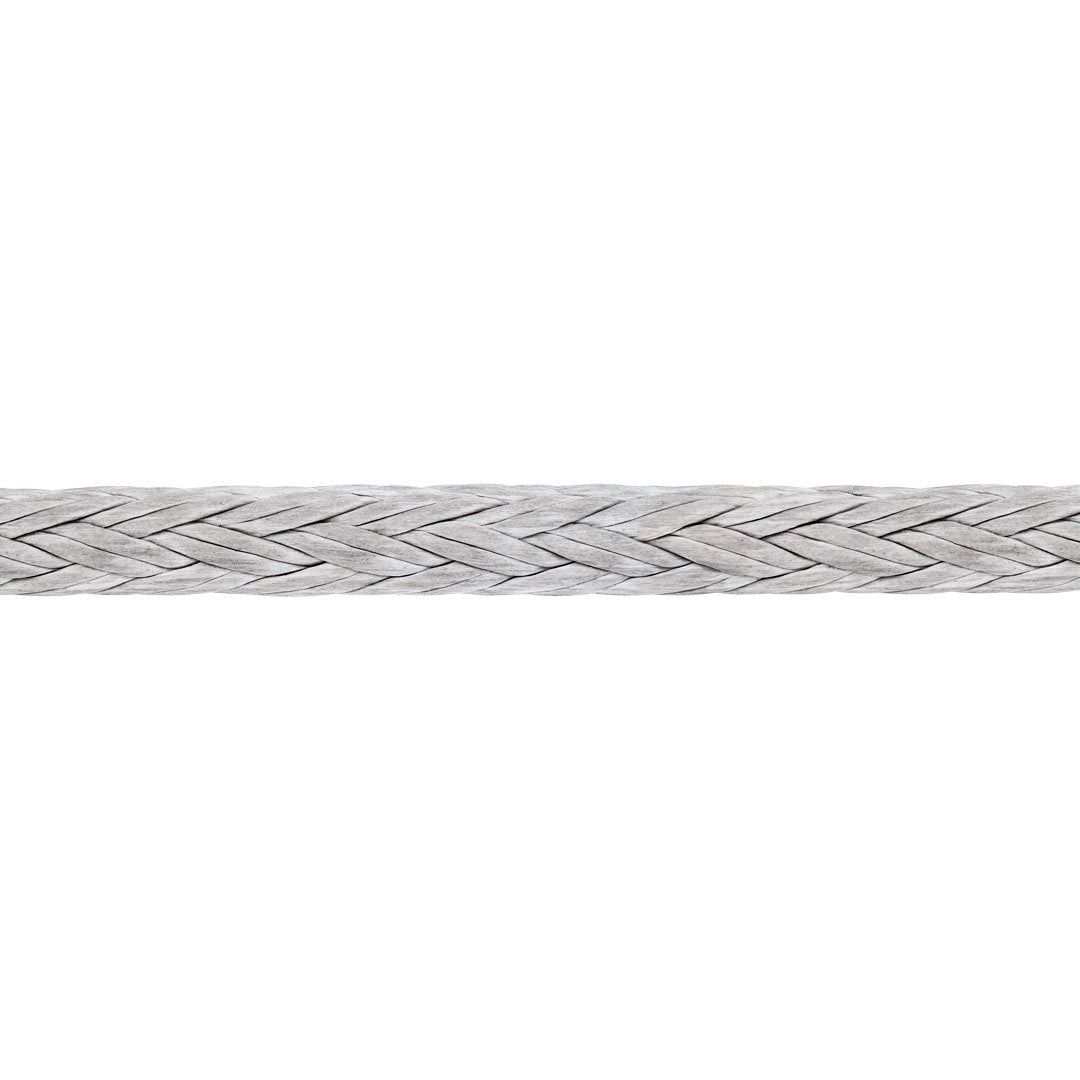

Super 12

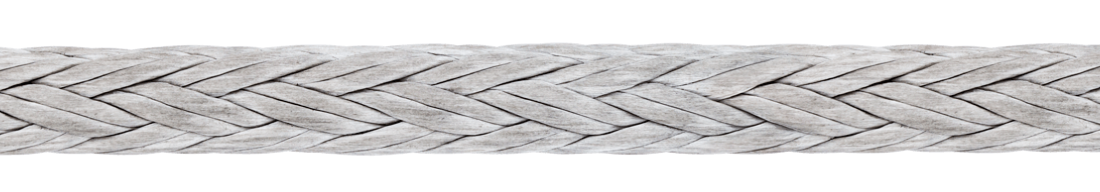

Heat-treated 12-strand single braid HMPE rope with abrasion-resistant coating

This rope is designed for high load applications where exceptionally low weight is required—making for an excellent wire-replacement rope. The heat treatment and polyurethane coating applied increases the rope's abrasion resistance, prolonging its life.

Features

Extreme strength-to-weight ratio
15 x stronger than steel
Safer than wire (low recoil)
Hydrophobic fibre (no water absorption)
Floats
Low creep
Easy to splice
Resistant to kinking
Maintains high strength around tight-radius bends
Exceptional UV and chemical resistance
Abrasion-resistant coating reduces likelihood of snagging and provides superior winch drum grip

Applications

Wire rope replacement
Winch lines
Towing
Lifting
Halyards
Check stays
Guys
Runner Tails
Kickers
Strops

Technical

Material:	Stealth Fibre
Construction:	12-Strand Single Braid
Treatment:	Heat-set with polyurethane coating

Standard Range

Diameters:	1 – 105 mm (larger diameters available on request)
Reel Length:	200 m
Colour:	Silver-grey

Options

Available in 3 constructions:
- Single strand (1 – 9 mm)
- Double strand (10 – 60 mm)
- Braid-on-braid (64 – 105 mm)
Custom colours (silver-grey standard)
Protective cover braid
Larger diameters
Spliced eyes
Thimbles
Proof loading with certificate

BREAK LOADS

Metric

Nominal Diameter (mm)	Spliced Break Load (t)	Linear Break Load (t)
1	0.28	0.31
1.5	0.42	0.47
1.75	0.55	0.61
2	0.85	0.94
3	1.3	1.4
4	2.2	2.4
5	3.1	3.4
6	4.3	4.8
7	5.2	5.8
8	6.6	7.3
9	8.3	9.2
10	9.7	10.8
12	15.3	17.0
14	17.9	19.9
16	21.2	23.5
18	31.3	34.7
19	34.9	38.7
20	40.8	45.3
22	47.0	52.2
24	55.2	61.3
26	65.3	72.5
28	76.0	84.4
30	82.5	91.6
32	84.6	93.9
34	95.0	105.5
36	106.8	118.5
38	118	130
40	131	145
42	143	158
44	157	174
46	168	186
48	181	200
50	191	212
52	201	223
54	215	238
56	230	255
58	248	275
60	268	297
62	293	325
64	320	355
66	339	376
68	360	399
70	379	420
72	400	444
74	424	470
76	450	499
78	474	526
80	500	555
88	600	666
96	710	788
105	850	943
