Suncor

Suncor Swivel Snap Shackle

$17.52 USD

Sale Sold out

Shipping calculated at checkout.

Size 2-3/4" for 1/2" Line 3-1/2" for 5/8" Line 4-3/4" for 3/4" Line

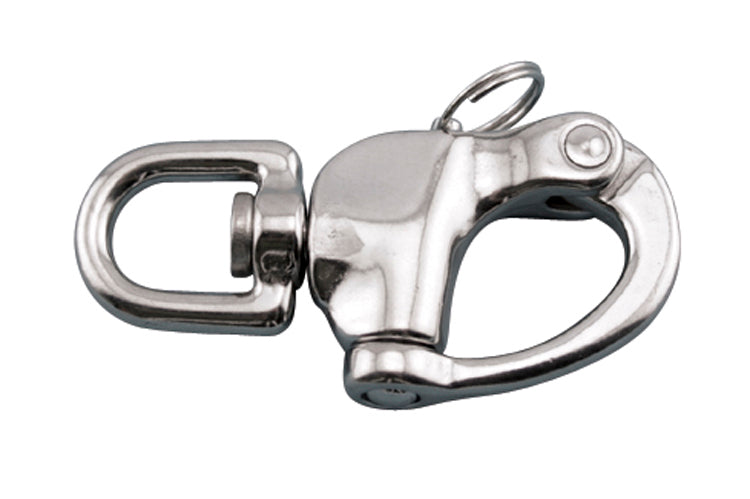

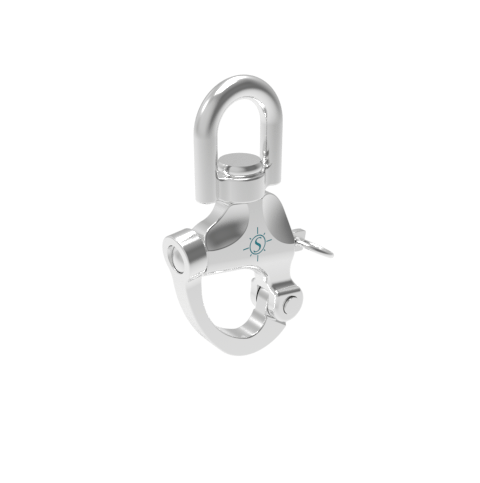

The Swivel Snap Shackle is made from grade 316 stainless steel for maximum corrosion resistance and durability, making it ideal for marine and industrial applications.

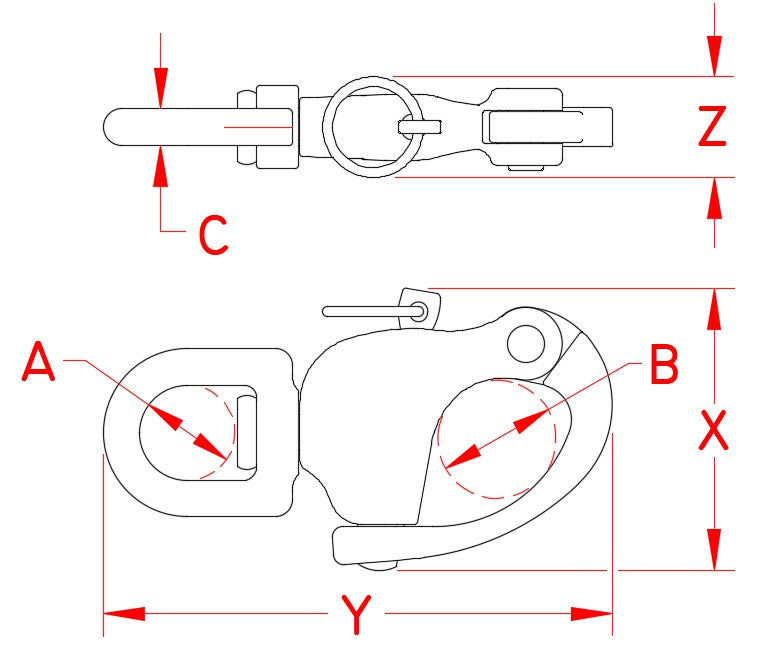

ALL DIMENSIONS ARE NOMINAL (+/- 3%) AND ARE SUBJECT TO CHANGE WITHOUT NOTICE.

ITEM	A	B	C	X	Y	Z	WLL (lb)	WT (lb)
S0157-0001	0.54″	0.57″	0.18″	1.86″	2.66″	0.47″	1,000	0.13
S0157-0002	0.65″	0.75″	0.25″	1.94″	3.43″	0.57″	1,500	0.28
S0157-0003	0.89″	1.05″	0.36″	2.46″	4.94″	0.81″	2,000	0.66
