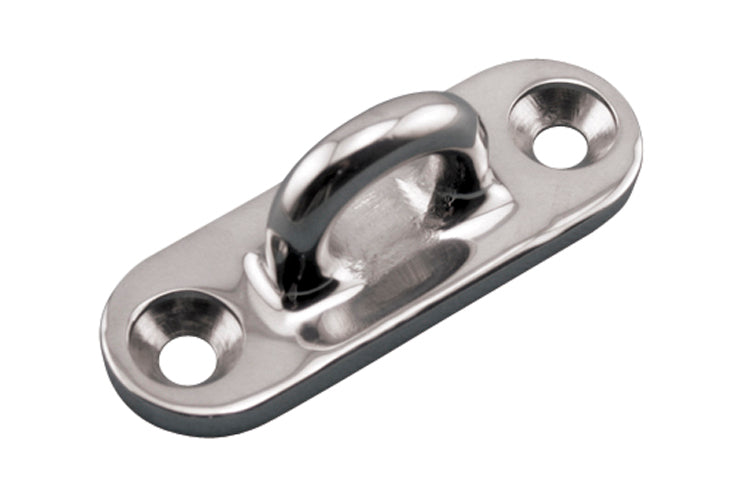

Suncor Heavy Duty Oblong Pad Eye
Suncor Heavy Duty Oblong Pad Eye
Regular price
$14.40 USD
Regular price
Sale price
$14.40 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Grade: 316 Stainless Steel
The Heavy Duty Oblong Pad Eye is precision cast and ideal for marine, industrial, architectural, OEM and government applications. This oblong pad eye is made from grade 316 stainless steel for maximum corrosion resistance and durability.
Specifications
ALL DIMENSIONS ARE NOMINAL (+/- 3%) AND ARE SUBJECT TO CHANGE WITHOUT NOTICE.
| ITEM | SIZE | A | B | C | D | E | F | FASTENER | X | Y | Z | WLL (lb) |
WT (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S3705-X001 | 3″ | 0.63″ | 0.53″ | 0.31″ | 0.24″ | 2.12″ | 0.24″ | #14 | 1.08″ | 3.00″ | 0.85″ | 1,000 | 0.15 |
| S3705-X002 | 3-1/2″ | 0.76″ | 0.60″ | 0.37″ | 0.26″ | 2.65″ | 0.30″ | #20 | 1.21″ | 3.50″ | 1.24″ | 1,500 | 0.29 |
| S3705-X003 | 4″ | 0.88″ | 0.68″ | 0.37″ | 0.28″ | 3.04″ | 0.29″ | #20 | 1.31″ | 4.00″ | 1.42″ | 2,000 | 0.44 |
