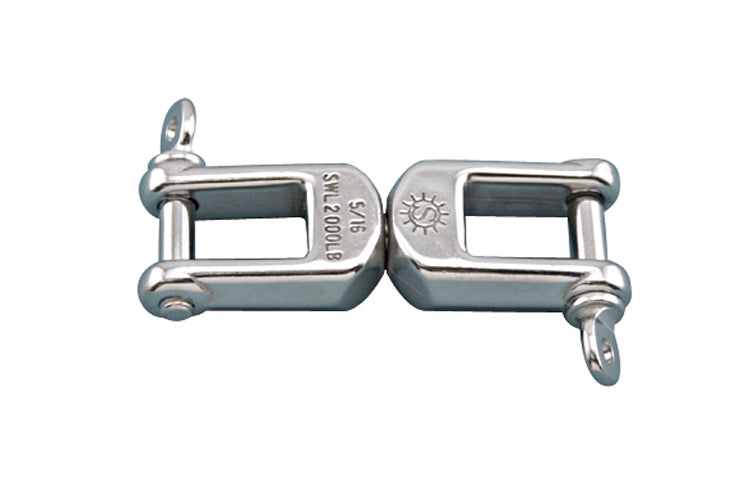

Suncor Heavy Duty Jaw & Jaw Swivel – 316 Stainless Steel
Suncor Heavy Duty Jaw & Jaw Swivel – 316 Stainless Steel
Couldn't load pickup availability
Built for strength, reliability, and long-term performance, the Suncor Heavy Duty Jaw and Jaw Swivel is a load-rated, precision-cast component designed to meet the demands of both marine and industrial rigging applications. Constructed from Grade 316 stainless steel, this swivel offers exceptional corrosion resistance, making it ideal for harsh marine environments.
The jaw-to-jaw design provides secure and flexible connections while preventing line or cable twisting under load. Available in a range of sizes to suit your specific rigging needs.
Features:
-
Grade 316 Stainless Steel for superior corrosion resistance
-
Heavy-duty, precision-cast construction
-
Load-rated for demanding applications
-
Jaw & Jaw swivel design reduces twisting under tension
-
Ideal for marine, industrial, and architectural rigging

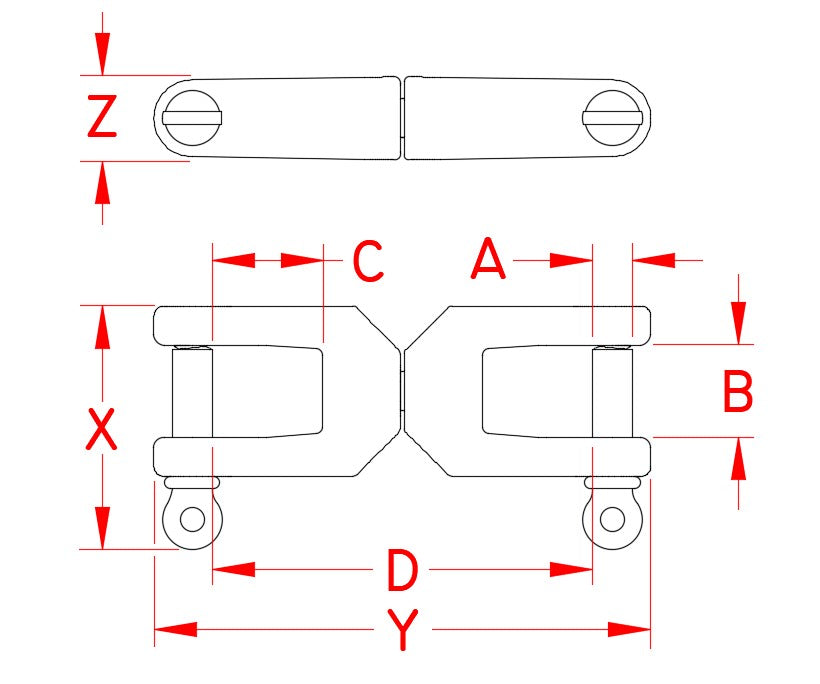

ALL DIMENSIONS ARE NOMINAL (+/- 3%) AND ARE SUBJECT TO CHANGE WITHOUT NOTICE.
| ITEM | A (size) |
B | C | D | X | Y | Z | WLL (lb) |
WT (lb) |
|---|---|---|---|---|---|---|---|---|---|
| S0156-HD07 | 1/4″ | 0.55″ | 0.65″ | 2.35″ | 1.59″ | 3.19″ | 0.53″ | 750 | 0.27 |
| S0156-HD08 | 5/16″ | 0.67″ | 0.88″ | 3.04″ | 2.00″ | 4.00″ | 0.68″ | 1,400 | 0.52 |
| S0156-HD10 | 3/8″ | 0.75″ | 1.00″ | 3.63″ | 2.33″ | 4.75″ | 0.80″ | 2,000 | 0.87 |
| S0156-HD13 | 1/2″ | 1.10″ | 1.40″ | 4.80″ | 2.82″ | 6.34″ | 1.07″ | 3,300 | 2.03 |
