Suncor

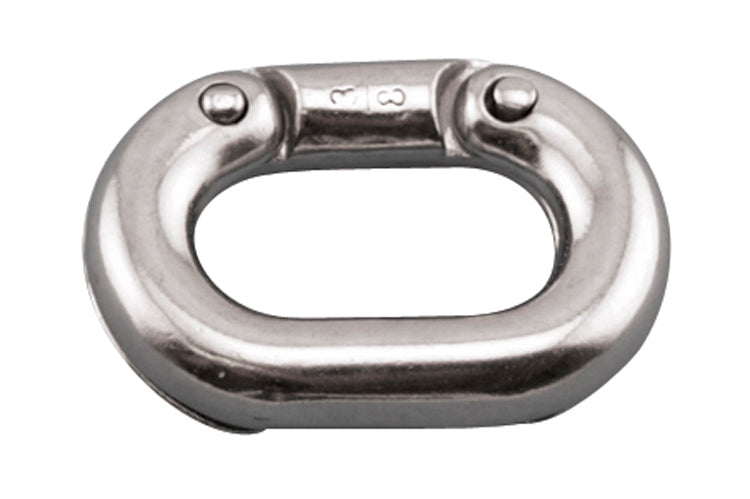

Suncor Cast Connecting Link

$5.03 USD

Sale Sold out

Shipping calculated at checkout.

Size 3/16" 1/4" 5/16" 3/8" 1/2" 5/8"

Grade: 316 Stainless Steel

The Cast Connecting Links are primarily used to connect two chains or a chain to an end component. These stainless steel connecting links are cast and made from grade 316 stainless steel for maximum corrosion resistance and durability. Do not use the connecting link without riveting the pins securely.

Specifications

Stainless Steel Cast Connecting Link, S0460-0005, S0460-0006, S0460-0008, S0460-0010, S0460-0013, S0460-0016, Line Drawing

ALL DIMENSIONS ARE NOMINAL (+/- 3%) AND ARE SUBJECT TO CHANGE WITHOUT NOTICE.

ITEM	A	B	X	Y	Z	WLL (lb)	WT (lb)
S0460-0005	0.35″	0.70″	0.73″	1.12″	0.19″	400	0.03
S0460-0006	0.43″	0.84″	0.88″	1.30″	0.25″	600	0.04
S0460-0008	0.48″	0.95″	1.18″	1.67″	0.36″	1,000	0.09
S0460-0010	0.60″	1.15″	1.31″	1.87″	0.38″	1,500	0.14
S0460-0013	0.75″	1.45″	1.72″	2.43″	0.50″	2,000	0.28
S0460-0016	0.95″	1.90″	2.17″	3.15″	0.65″	4,000	0.57
