Tylaska Snap Shackle

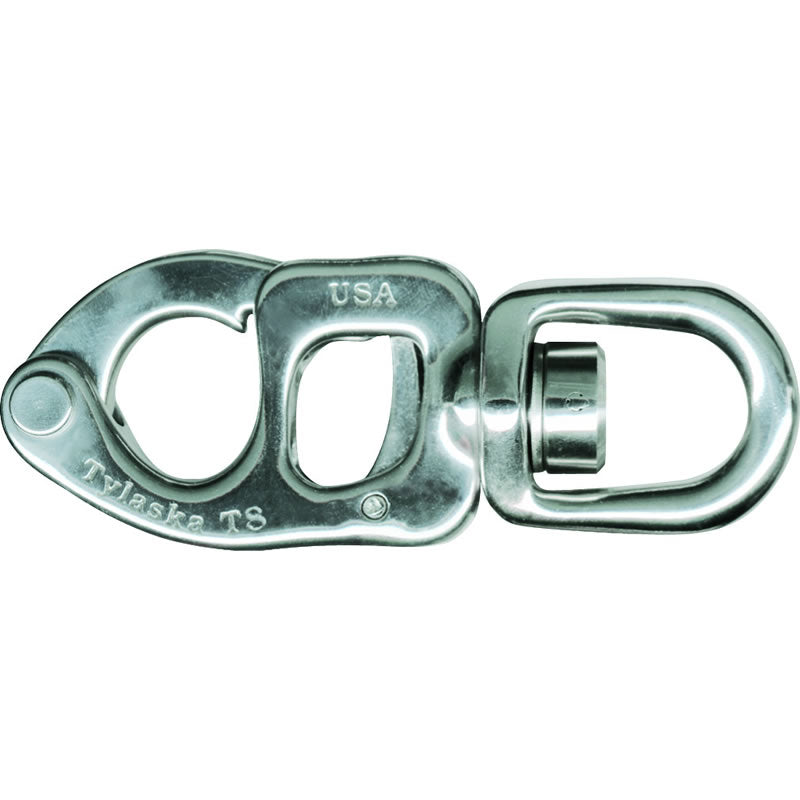

Tylaska Standard Bail Trigger Snap Shackle

• 100% proof tested to max working load
• Heat treated 17-4 PH stainless steel
• Available in standard, large, and clevis bail types
• Also available in black oxide and bronze finish

Specifications:

• 2500 lbs SWL
  • Breaking Strength: 5,000 lbs
  • Standard Bail Weight: 2.2 oz
  • Large Bail Weight: 2.7 oz
  • Ideal for 20 to 30 foot boats
• 4000 lbs SWL
  • Breaking Strength: 8,000 lbs
  • Standard Bail Weight: 3.5 oz
  • Large Bail Weight: 4.5 oz
  • Ideal for 22 to 36 foot boats
• 6000 lbs SWL
  • Breaking Strength: 12,000 lbs
  • Standard Bail Weight: 5.9 oz
  • Large Bail Weight: 8.1 oz
  • Ideal for 30 to 45 foot boats
• 10000 lbs SWL
  • Breaking Strength: 20,000 lbs
  • Standard Bail Weight: 12.7 oz
  • Large Bail Weight: 15.9 oz
  • Ideal for 40 to 70 foot boats
• 15000 lbs SWL
  • Breaking Strength: 30,000 lbs
  • Standard Bail Weight: 26.8 oz
  • Large Bail Weight: 34.9 oz
  • Ideal for 60 to 80 foot boats
